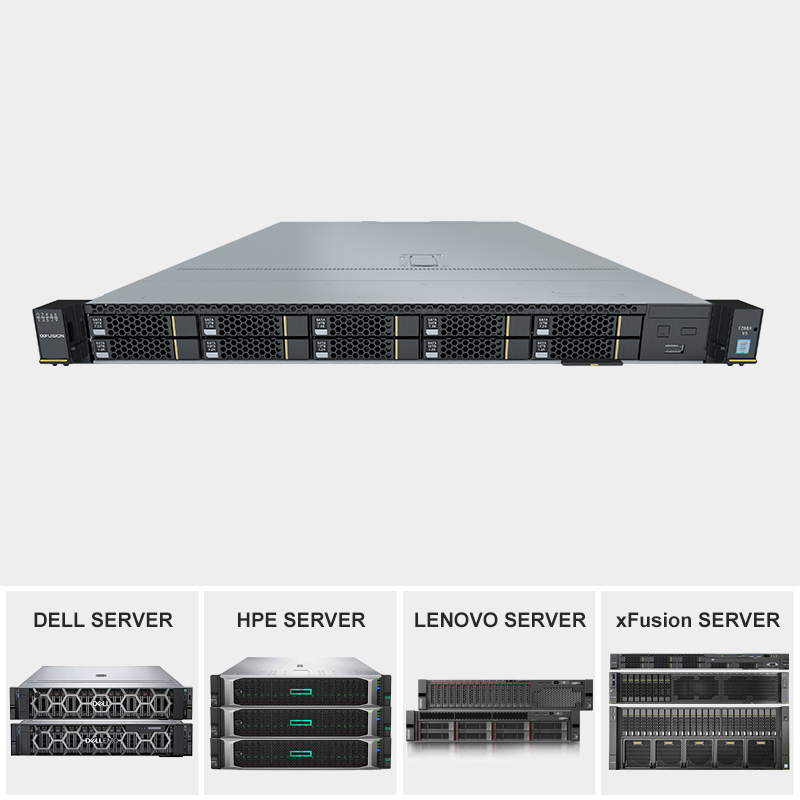

FusionServer 1288H V7 (hereinafter referred to as 1288H V5) is designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise market, and telecom business applications. It is a new generation 1U 2-socket rack server with a wide range of applications. The 1288H V5 is ideal for IT core business, cloud computing, virtualization, scientific computing, enterprise or telecom business applications, and other complex workloads. It features low energy consumption, strong scalability, high reliability, easy management, and simple deployment.
| Server Model | FusionServer 1288H V5 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive bays |
Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Rail | Rail |
| Height X Width X Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs: 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs: 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) *Additional charge required for specific models |
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please reach out to us, and we will prioritize your inquiry accordingly.
Different products have different MOQs. Let us know your requirements, and we will try our best to accommodate your needs. Small and sample orders are also welcome.
Products might appear similar externally, but internal components and hardware specifications can vary. Internal build quality differences determine different pricing levels, and we only offer configurations that support reliable, long-term operations.
We accept bank card transfers, credit cards, T/T (Telegraphic Transfer), Alipay, and other secure payment methods to eliminate payment security concerns.
Yes, the server supports various flexible drive configurations (including 2.5-inch and 3.5-inch SAS/SATA/SSD/NVMe drives) that support hot-swapping to ensure system uptime during replacement.
