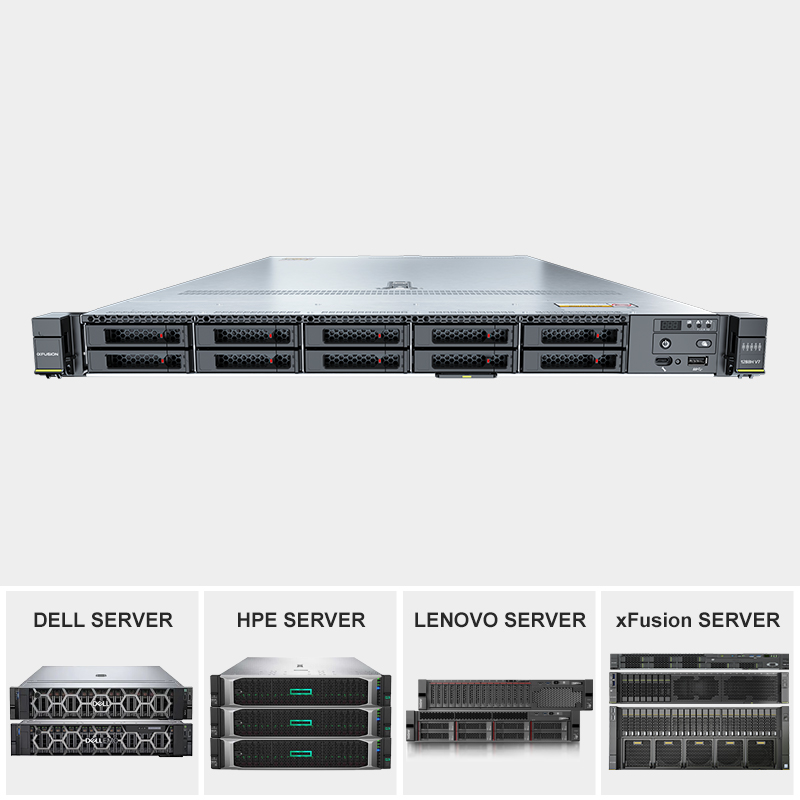

| Server Model | FusionServer 1288H V7 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive bays |
Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Rail | Rail |
| Height X Width X Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
