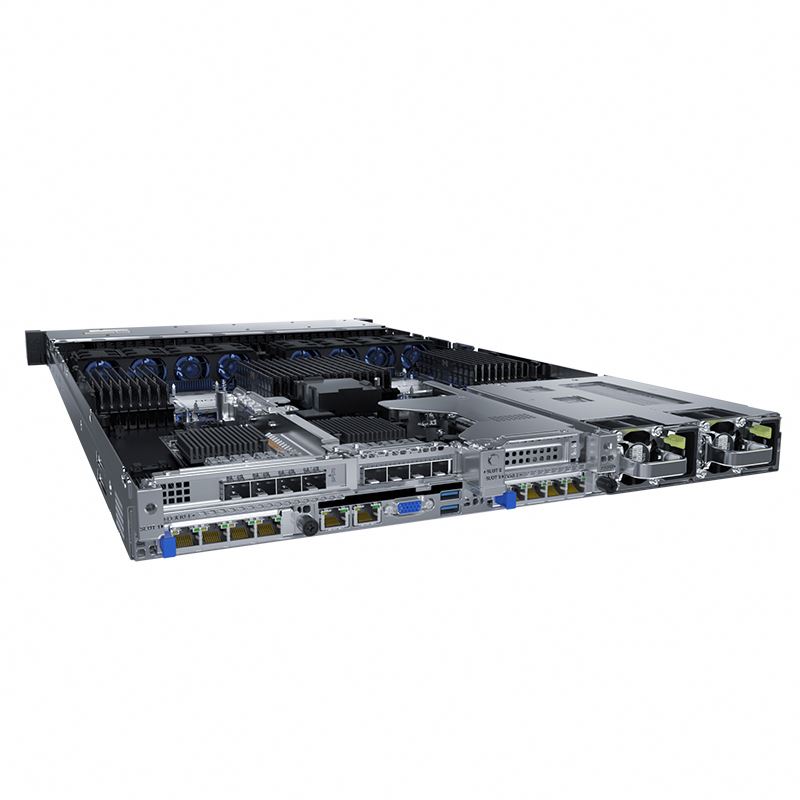

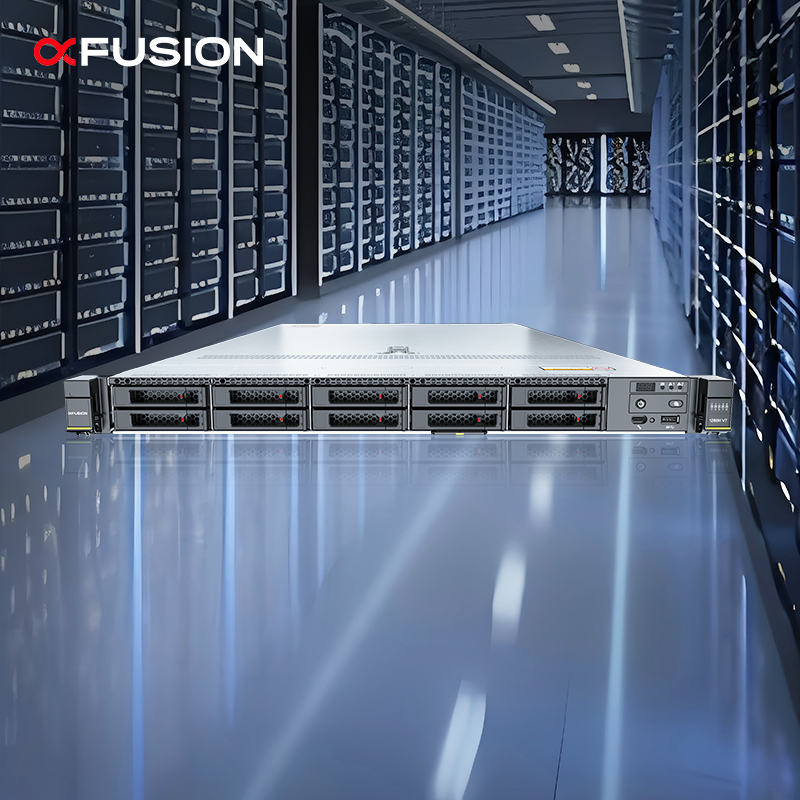

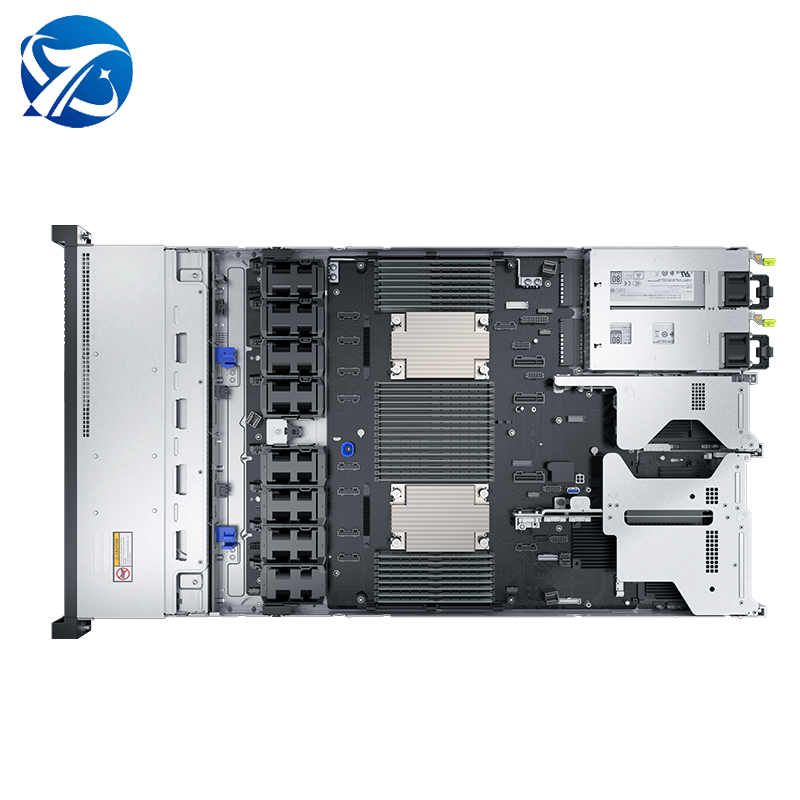

FusionServer 1288H V7 (hereinafter referred to as 1288H V7) is designed for the Internet, Internet Data Center (IDC), cloud computing. The enterprise market and telecom business applications have launched a new generation of 1U 2-socket rack servers with a wide range of applications. The 1288H V7 is suitable for IT core business, cloud computing, virtualization, scientific computing, enterprise or telecom business applications, and other complex workloads. The 1288H V7 has low energy consumption, strong expansion capabilities, high reliability, easy management, easy deployment and other advantages.
| Server Model | FusionServer 1288H V7 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive bays |
Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Rail | Rail kit configuration supported |
| Height X Width X Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W @ 100 V to 127 V AC, 1500 W @ 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs (1800 W @ 200 V to 220 V AC, or 192 V to 200 V DC; 2000 W @ 220 V to 240 V AC, or 200 V to 288 V DC) |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
A1: We usually quote within 24 hours after receiving your inquiry. If you are in a rush, please notify us, and we will give high priority to your inquiry.
A2: The best quality and reputation are our main concerns. We provide a 3-year replacement warranty on whole-machine products and maintain a complete supply chain. All memory modules consist of original brand chips and are strictly tested prior to shipping.
A3: Yes. We passed annual audits and financial inspections. We support safe payment methods like bank transfers, T/T, credit cards, and online transaction protection options to secure your purchases.
A4: MOQs vary depending on the product type. Let us know your requirements and we will do our best to assist you. Small trial orders are welcome.
A5: We have specialized in this line for years, focusing strictly on quality. While external appearances of servers may look similar, internal quality and components differ, driving variations in performance and price levels. We strive to provide premium quality at reasonable price points.

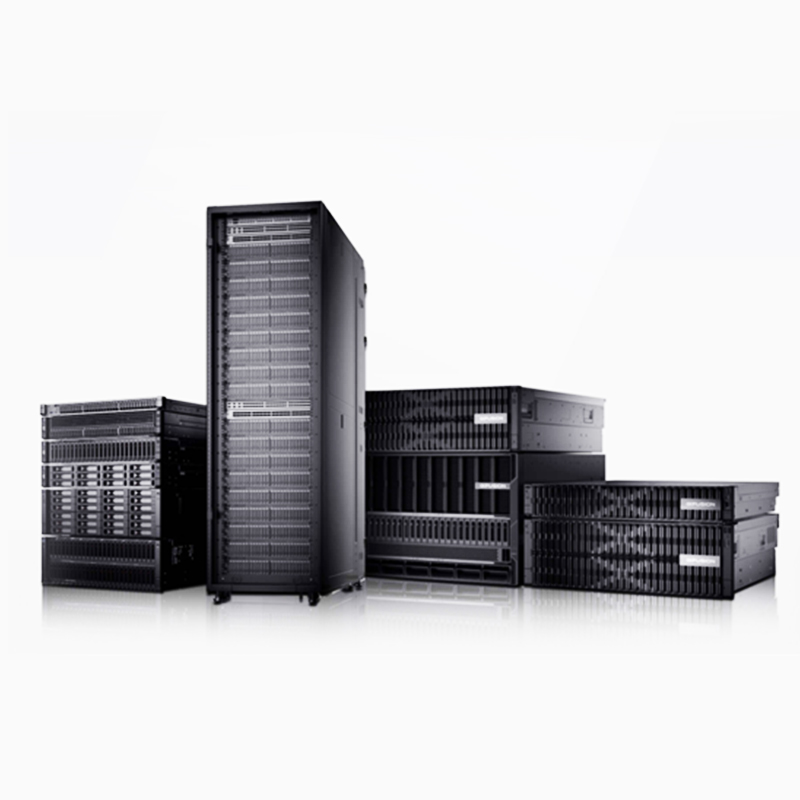

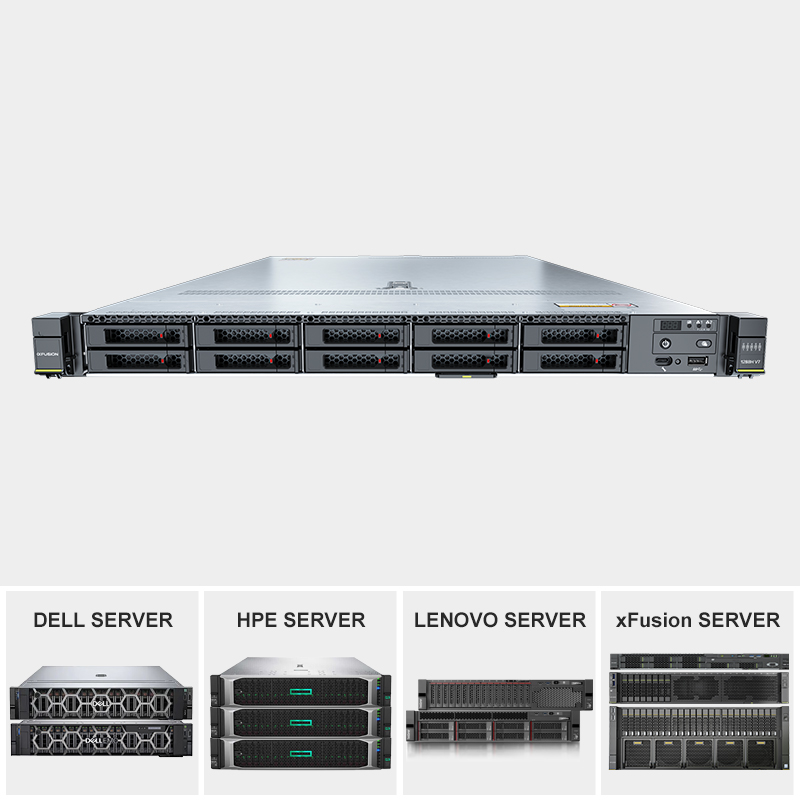

A6: We supply computing servers, storage, switches, CPUs, RAM, and hard drives from leading enterprise partners, including xFusion, Dell, HPE, and Lenovo.
